Layered cutters
23 3D-printable filesFive matching cutters build the layered lips.
- Four jewellery widths, plus a simpler three-cutter 26 mm stud set.
View all 8 tool previewsShow fewer tool previews
Build kit
3D print the tools. Make it in clay.
Pixel Lips Build Kit
3D print the cutters, then cut and stack polymer clay into Pixel Lips stud and drop earrings, brooches, pendants, keychains, magnets and wall art.
Digital download: STL files to 3D print, plus a PDF guide. Requires a 3D printer or 3D printing service.
What's included
35 3D-printable STL files, an illustrated maker guide and the Maker Licence.
Relief cutters
5 3D-printable filesThe outline and lip detail in one slab.
- Four jewellery widths, plus a 26 mm relief stud cutter.
Wall art
7 3D-printable files110 mm lips for wall art or an earring display.
- Five matching cutters, a rear hanger and a tape-on wall stud.
View all 7 tool previewsShow fewer tool previews
Guide and licence
2 PDFs- Illustrated guide covering every included method and finish.

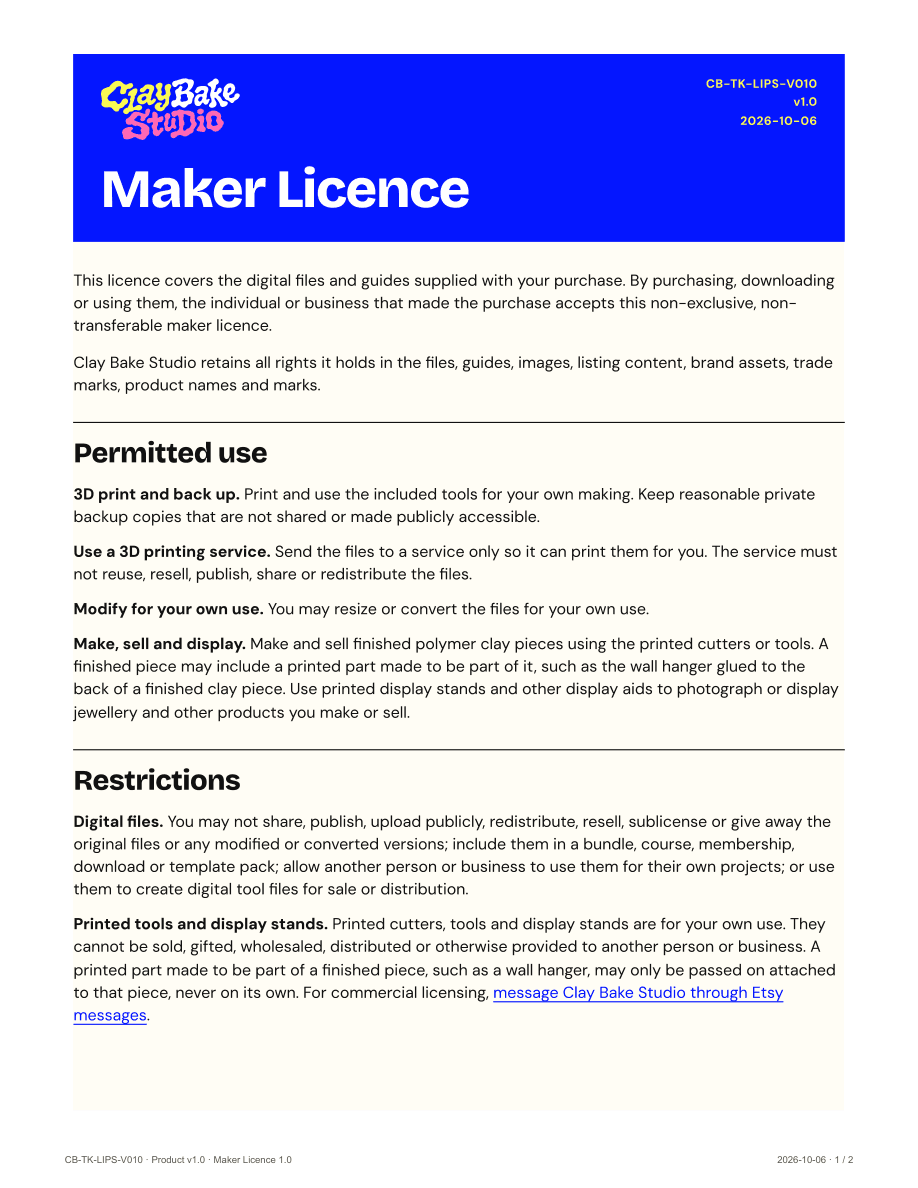

- Maker licence: sell finished clay pieces; files and printed tools are not for resale.
Choose a size
Sizes name the lips width, from corner to corner. Dimensions are the clay lips' width and height at 100% print scale, not the cutter's outside dimensions.
20 mm at the outlines' scale. Not an actual-size template.
Every layered cutter and the relief cutter comes in all four widths. Relief lips make earrings only as the 26 mm studs; larger relief lips are not made into earrings. The 26 mm studs have their own simpler cutters: three layers, or one relief slab.
| Outline to scale | Size | Clay outline (W x H) | Methods | Use it for |
|---|---|---|---|---|
| 26 mm | 26 x 16 mm |
| Stud earrings on flat-pad posts (their own simpler layered or relief cutters; do not drill) | |
| 44 mm | 44 x 28 mm |
| Drop earrings (layered; weigh them), brooch, pendant or magnet | |
| 48 mm | 48 x 30 mm |
| Brooch, pendant or magnet | |
| 56 mm | 56 x 35 mm |
| Brooch, pendant, keychain, bag charm or magnet | |
| 62 mm | 62 x 39 mm |
| Brooch, pendant, keychain, bag charm or magnet | |
| 110 mm110 x 69 mm |
| Wall art display, with a pair of 44 mm drops or on its own | ||
For larger layered lips, hanging holes for drops, pendants, keychains and bag charms are drilled through the pink base after baking and full cooling. Larger relief lips hang from glued bails. Studs, brooches and magnets need no hole. The guide gives the hole and hardware for each size.
Making methods
Two ways to make the Pixel Lips
Stack five colour layers for the raised lips, or press the outline and mouth into one slab with the relief cutter. The studs have their own simpler cutters. Hanging holes in larger layered lips are drilled through the pink base after baking; larger relief lips hang from glued bails.

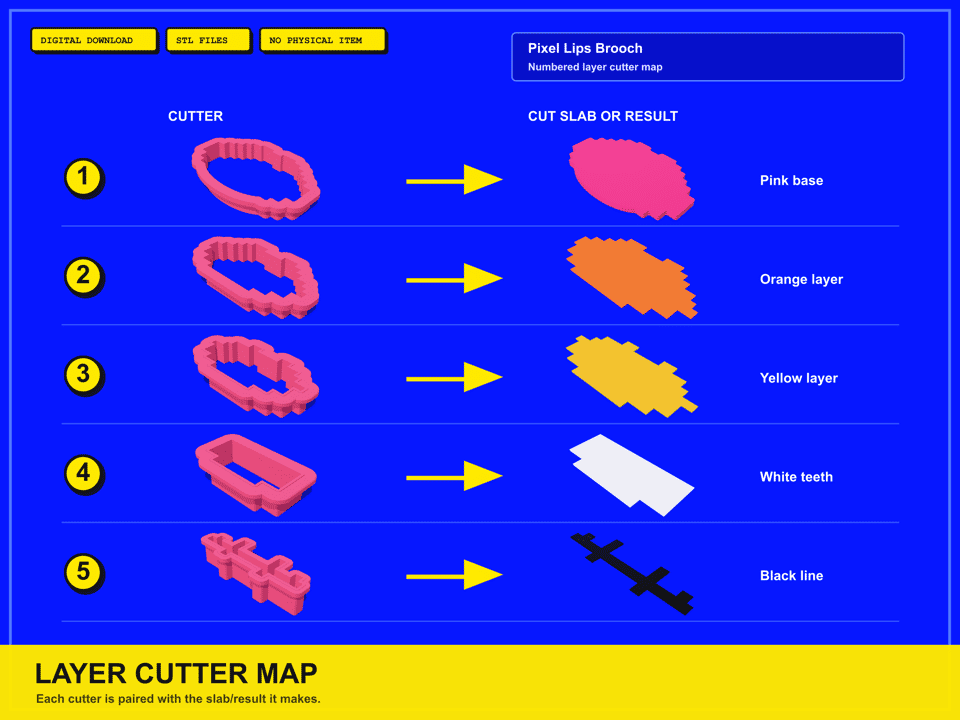

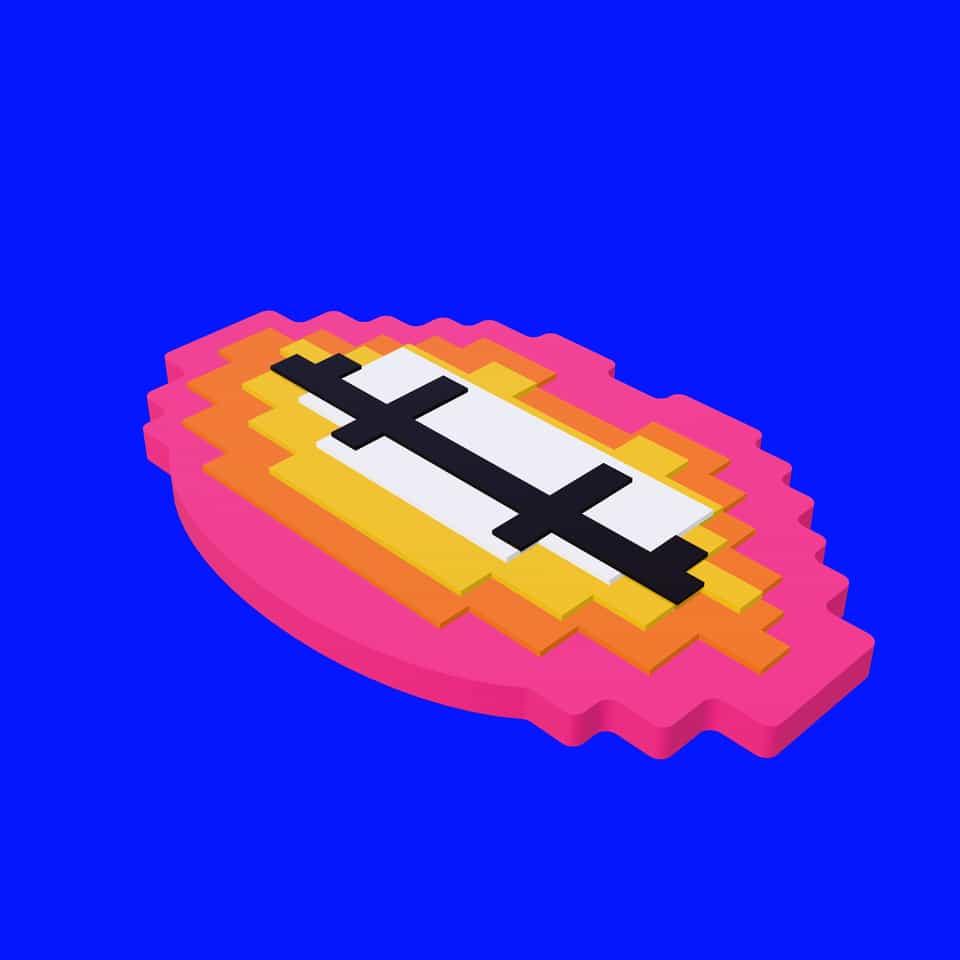

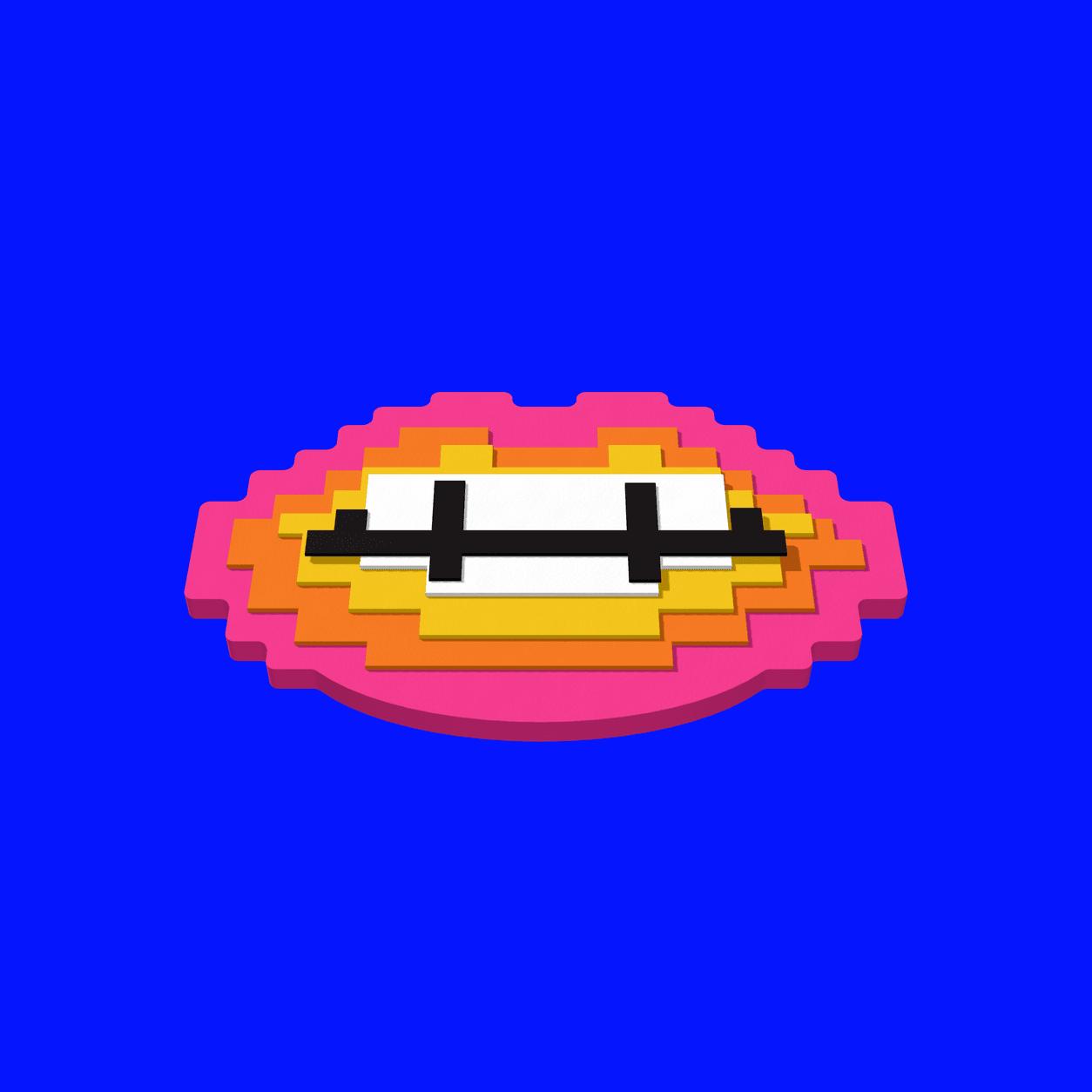

Five colour layers
Five cutters cut the pink base, the orange and yellow lip layers, the white teeth and the black tooth line, then you stack them into raised lips. Suits drop earrings, a brooch, pendant, keychain, magnet or wall art; the studs have their own three simpler cutters.
Layered Lips: cut shapes and stack
See each cut shape after the waste is cleared, then the five-layer Lips as the stack builds up. The film ends with earrings, a pendant, brooch, magnet, keychain and wall art display. Follow the PDF guide for the full making method.

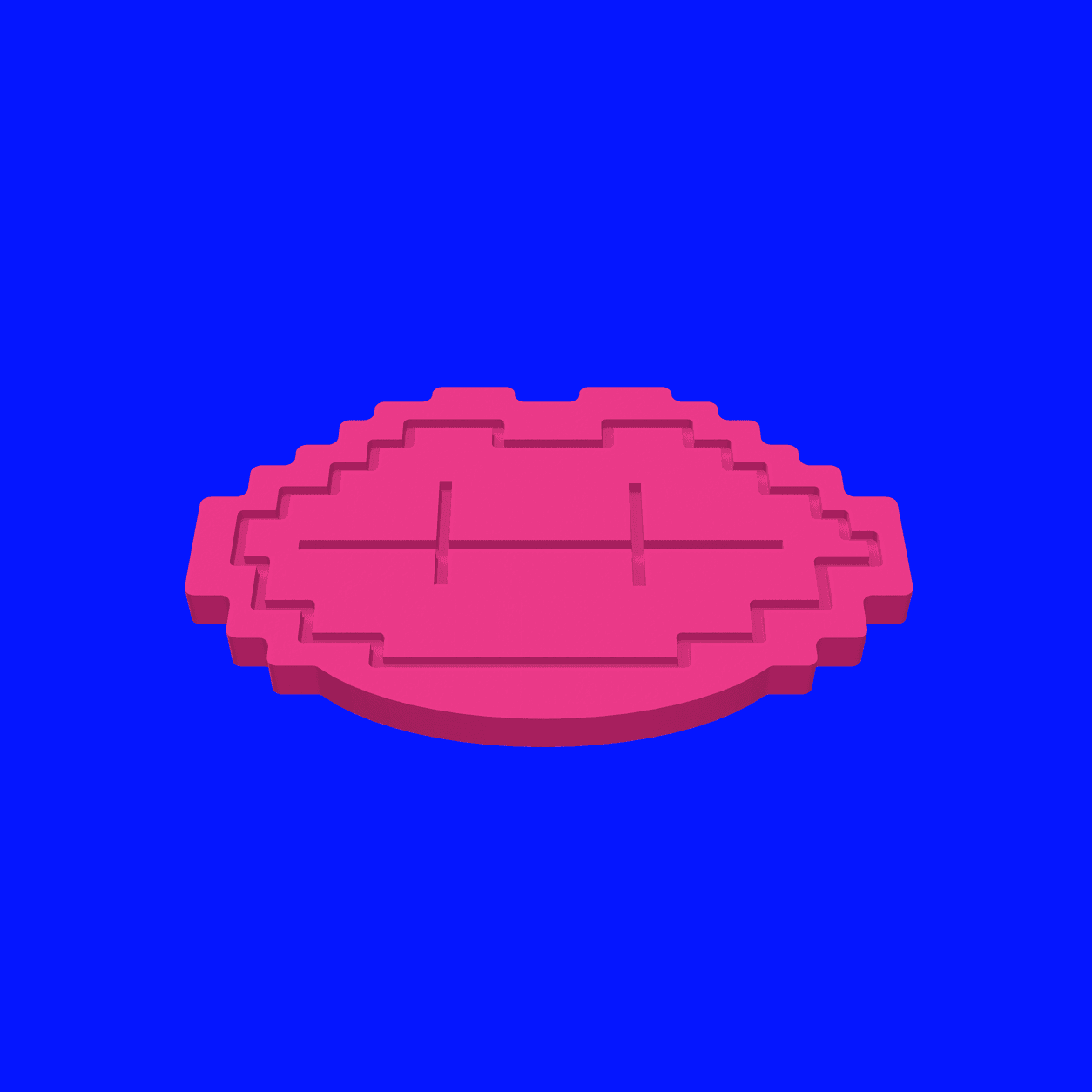

One-slab relief
One cutter cuts the lips outline and presses the lip line and mouth into a single slab of one clay colour. Paint the baked lips if you like. Suits the 26 mm studs, a brooch, a magnet or a pendant on a glued bail; 56 and 62 mm relief lips also make a keychain or bag charm.
Lips relief: one slab and finished uses
See the Lips outline and mouth detail in one clay slab before and after the surrounding waste is cleared. The film shows 26 mm relief studs and 56 mm pendant, brooch, magnet and keyring finishes. Follow the PDF guide for the full making method.
Your first piece
Pick your first piece
Print only the files for the piece you are making; the rest are there when you want another size or method.
One cutter, one colour

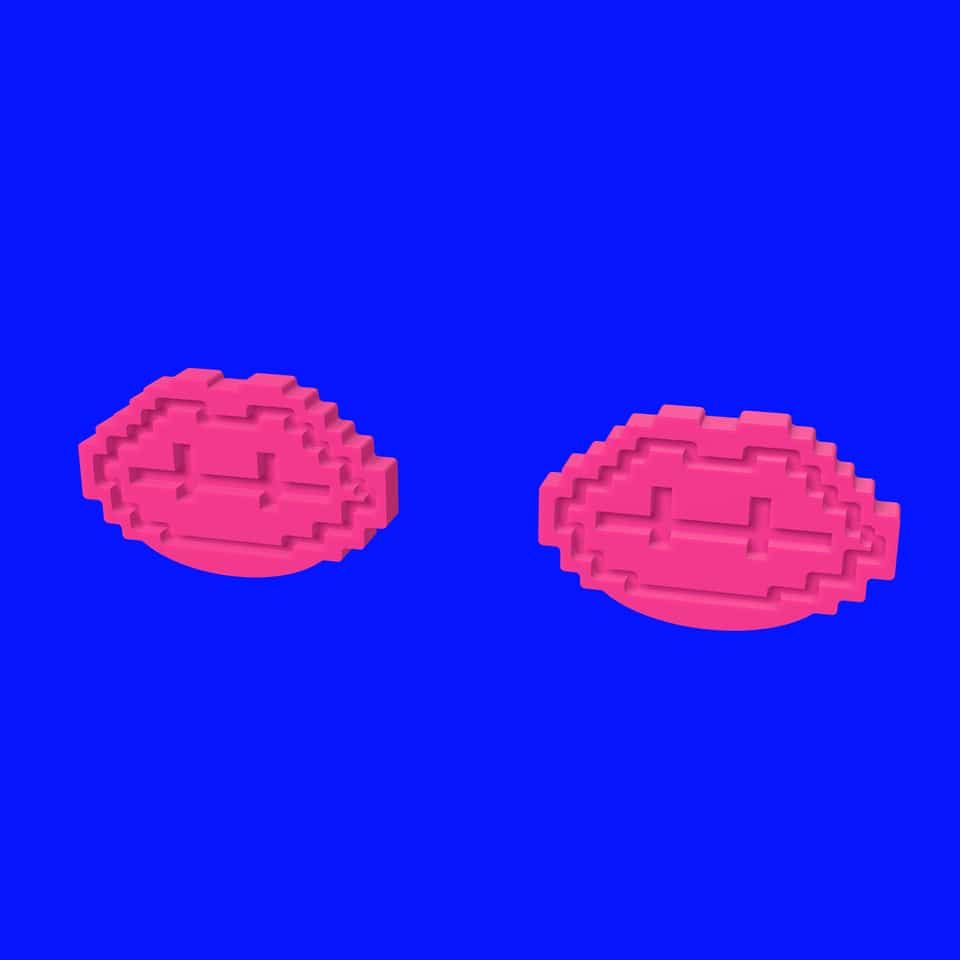

A pair of 26 mm relief studs
- One file: the 26 mm relief stud cutter. Print it once and press both earrings.
- Add
- One clay colour, two flat-pad stud posts with backs, and glue suited to baked clay and metal.
A single press cuts the lips and presses the mouth into one slab. Leave them one colour or paint the mouth after baking. About 1.9 g per earring with its post (an estimate).
See what you needSmall layered earrings

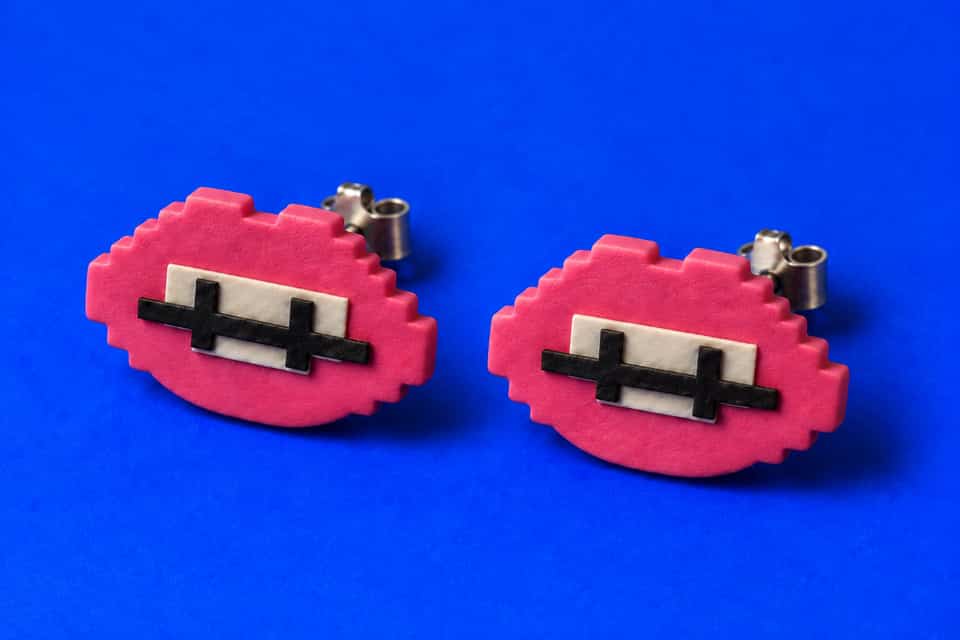

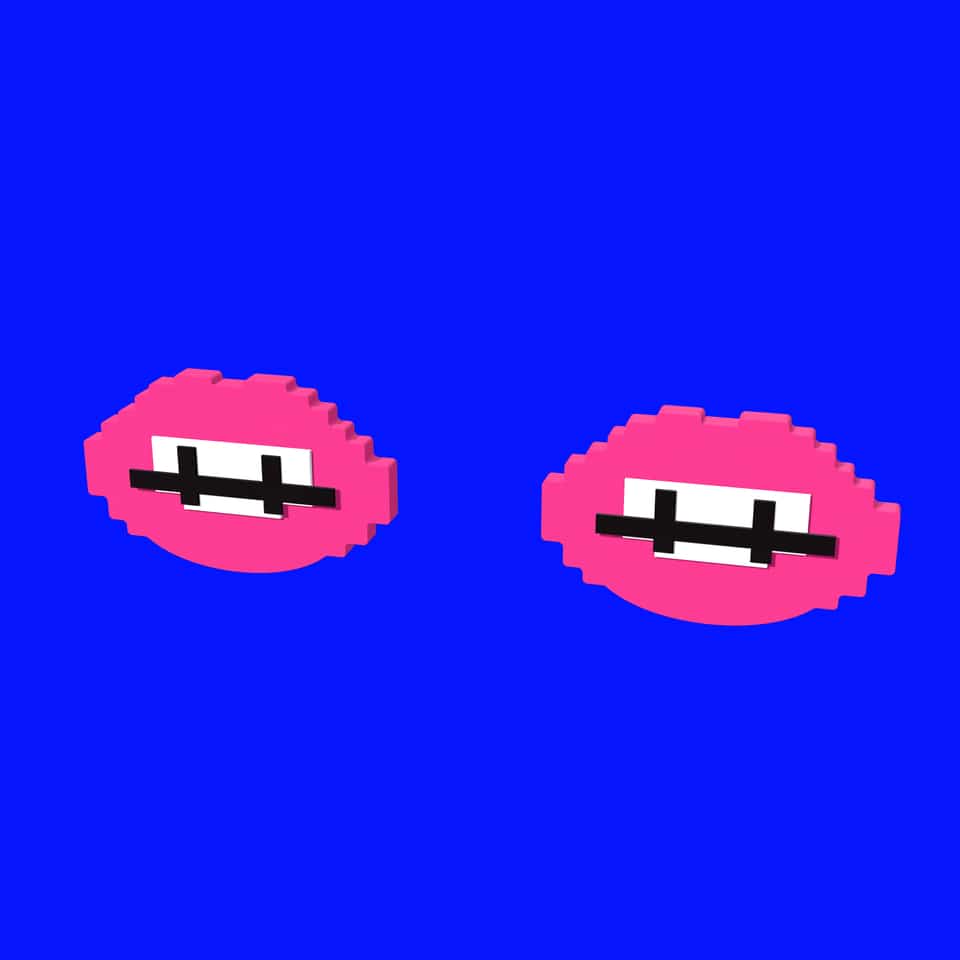

A pair of 26 mm layered studs
- The three 26 mm stud files: the base, teeth and tooth line cutters.
- Add
- Pink, white and black clay, two flat-pad stud posts with backs, and glue suited to baked clay and metal.
The stud keeps the pink lips, white teeth and black tooth line and leaves out the two thin lip sheets, so there are fewer layers to place. About 1.5 g per earring with its post (an estimate).
See what you needThe full layered look

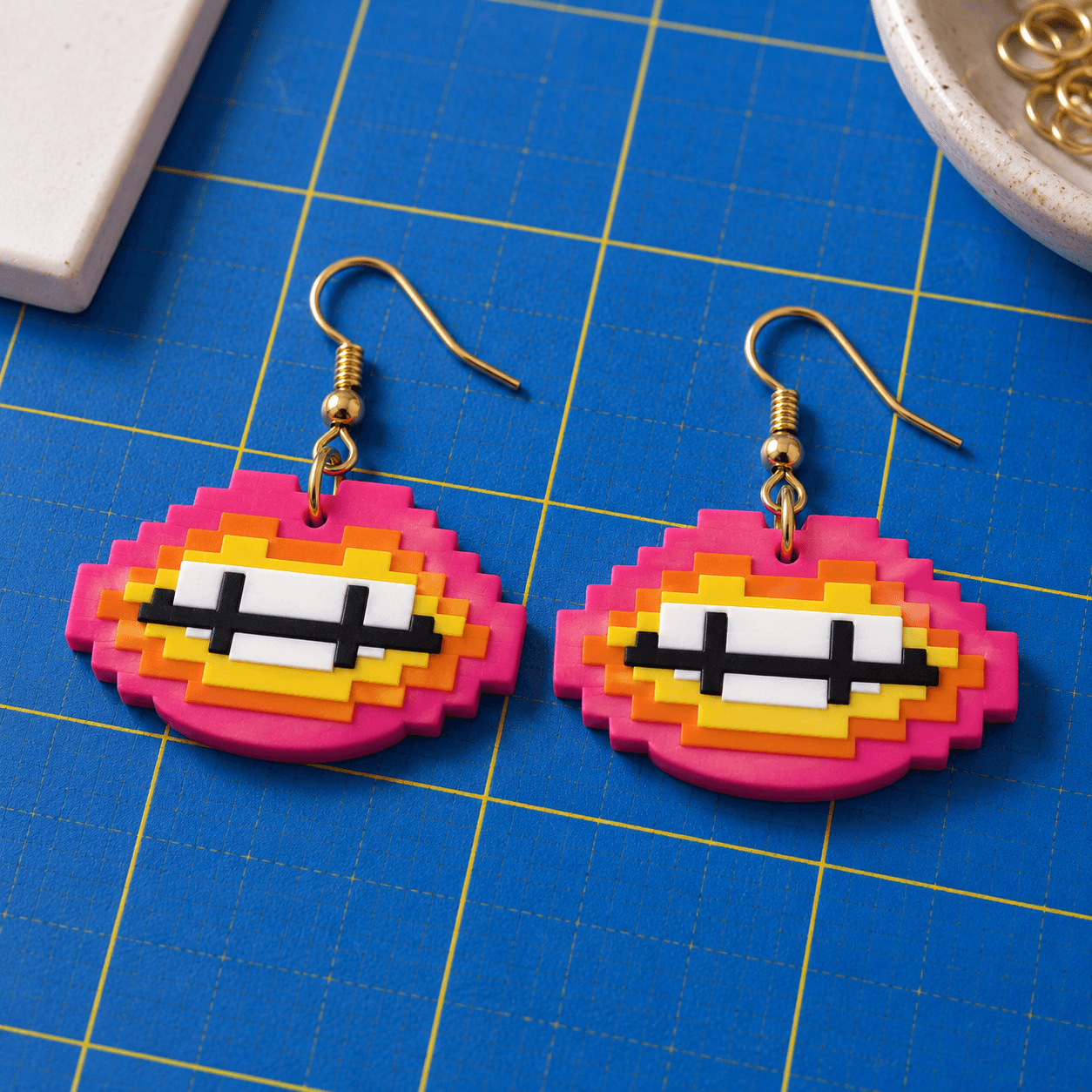

A 44 mm layered pair on ear wires
- The five files in the 44 mm layered set. Print them once and cut two of each shape.
- Add
- Five clay colours, thin spacers for the colour sheets, two ear wires, two jump rings and two pliers.
The full five-colour stack as statement drops, with the hole drilled after baking. About 5.3 g per earring with its ear wire and jump ring (an estimate; weigh each finished earring).
See what you needA roomy size to start

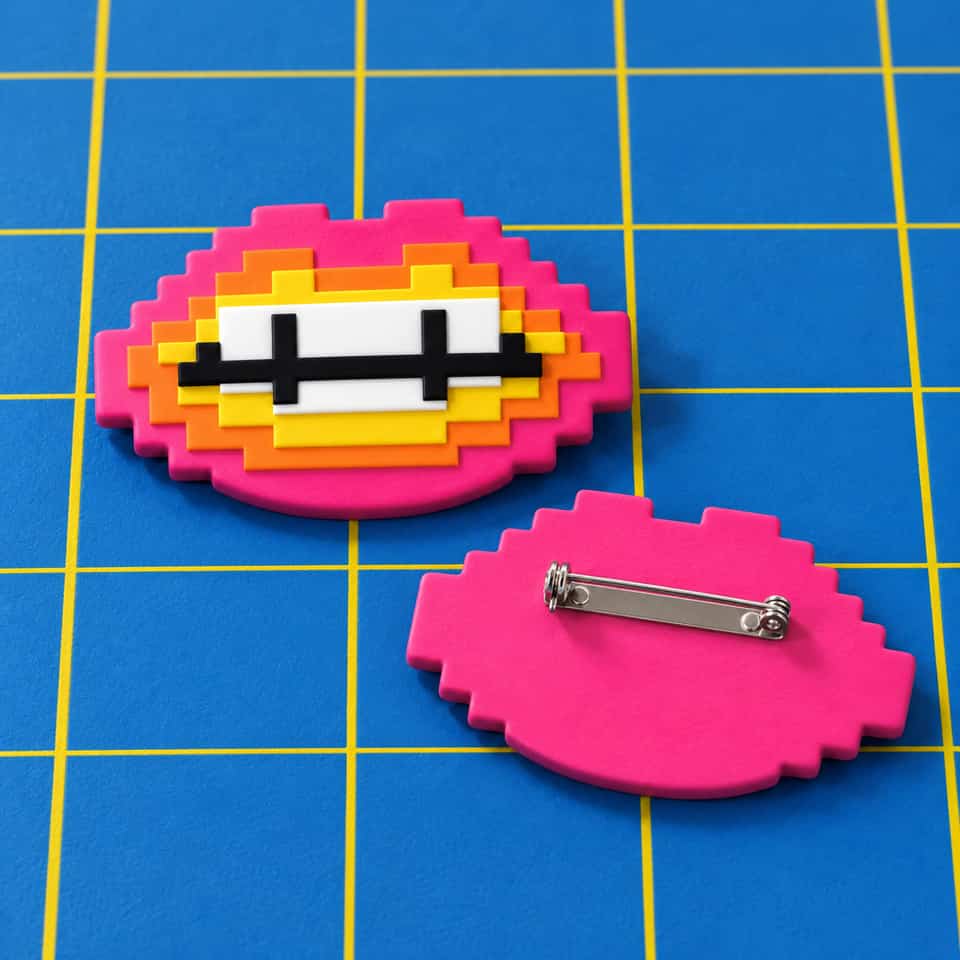

A 56 mm layered brooch
- The five files in the 56 mm layered set.
- Add
- Five clay colours, thin spacers for the colour sheets, a 32 mm bar pin, and glue suited to baked clay and metal.
The 56 mm lips give the teeth and black tooth line room while you place them. About 8.5 g with a 1 g bar pin (an estimate); weigh your finished brooch with its glue and finish. Fit the bar across the upper third of the flat back and let the glue cure fully before wearing.
See what you needWall art display

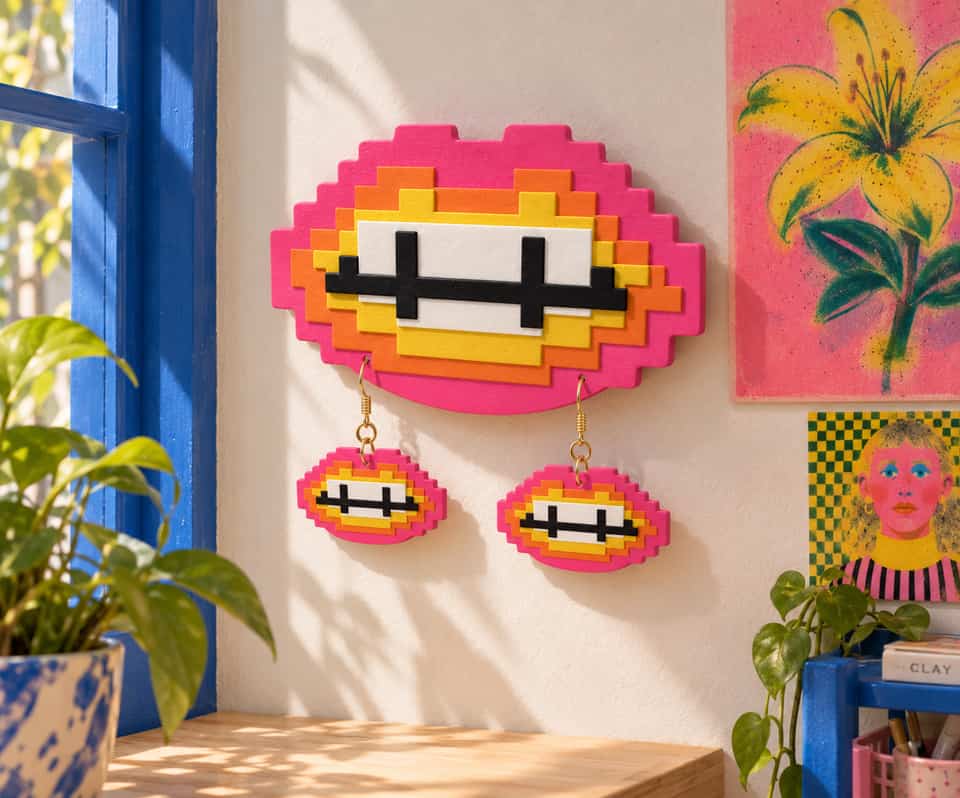

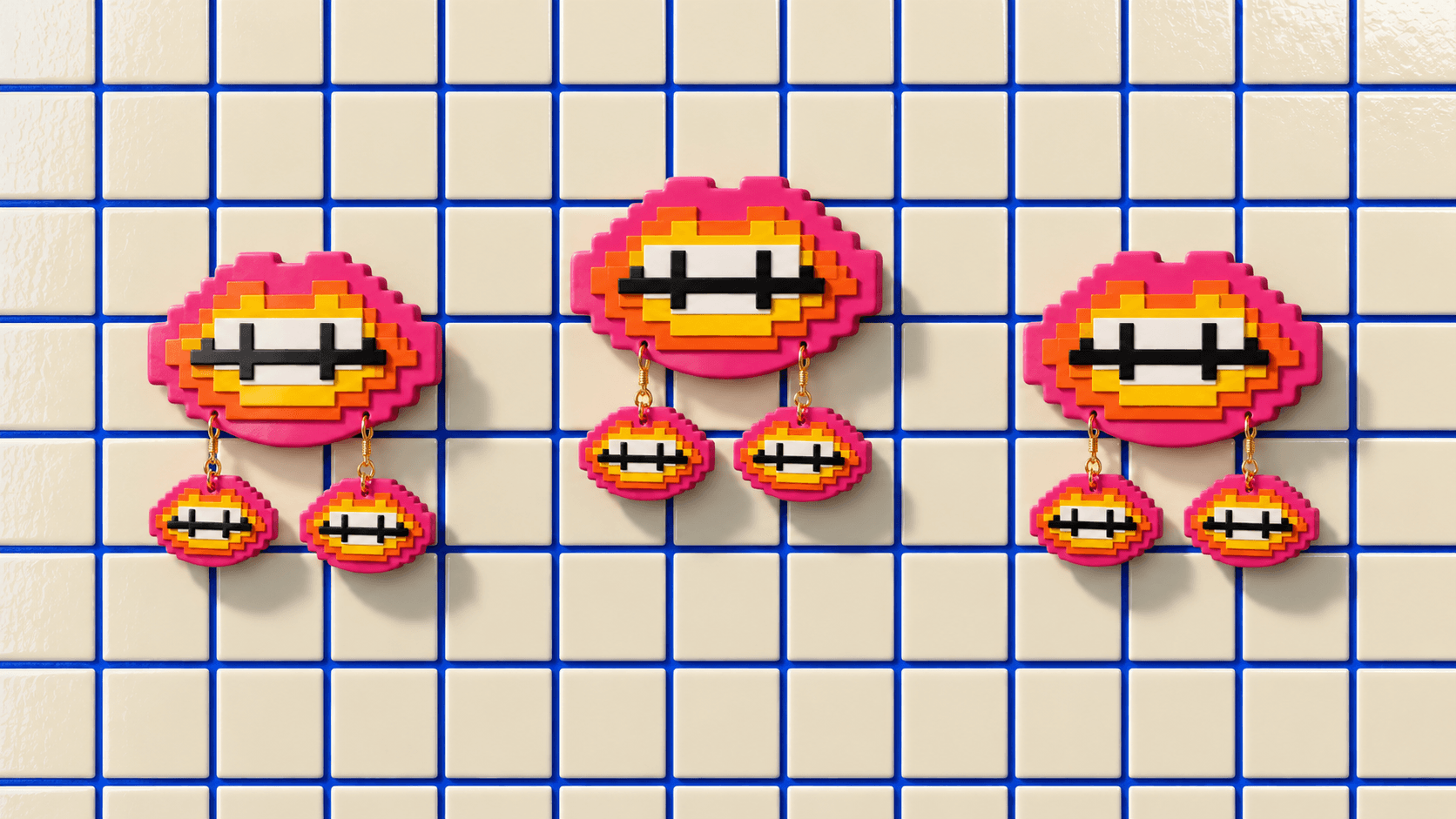

Show off your earrings on the wall
Cut, stack and bake the same five layers at 110 mm wide and the lips become wall art that holds a pair of 44 mm drop earrings. Make it in any colours.
- Show it
- Hang it behind your stall or on a shop wall at eye height. At home it keeps a favourite pair by the mirror, ready to wear.
- Hang it
- Print the hanger and glue it to the back at the guide position. Fit it to a suitable nail or the printed wall stud before mounting. For the stud, follow the exact tape instructions for compatible surfaces, preparation, pressure and waiting time. This projecting assembly has no established tape load rating.
- Style it
- The base cutter presses two small marks where the earring holes sit best. Drill them out for a pair of 44 mm drops, or smooth the marks away and hang it as art on its own.
- Sell it
- You can sell the finished display with its hanger glued on.
The layered build at a glance
Cut and stack the five shapes, bake and cool, then add the findings for your piece. The guide gives the full method, layer placement and attachment instructions.
Step 01 · base cutter
Cut the pink base
The base cutter makes the full lips outline and supports the four colour layers. Cut the stepped outline bare to keep the corners crisp; the release guide explains light dusting for sticking.

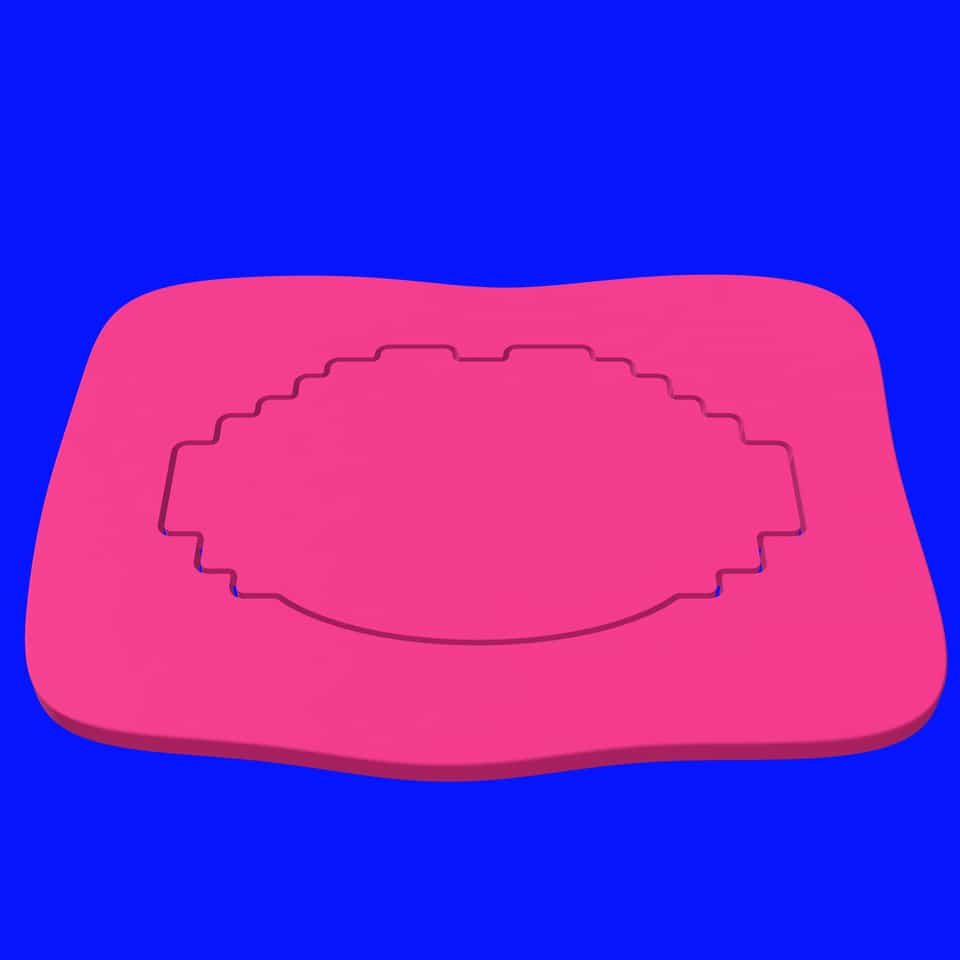

Lift the base cutter straight up; the lips outline stays cut into the pink slab, ready to peel away the extra clay.Help with this step
Step 02 · Outer lip and Inner lip cutters
Roll the thin sheets, then add orange and yellow

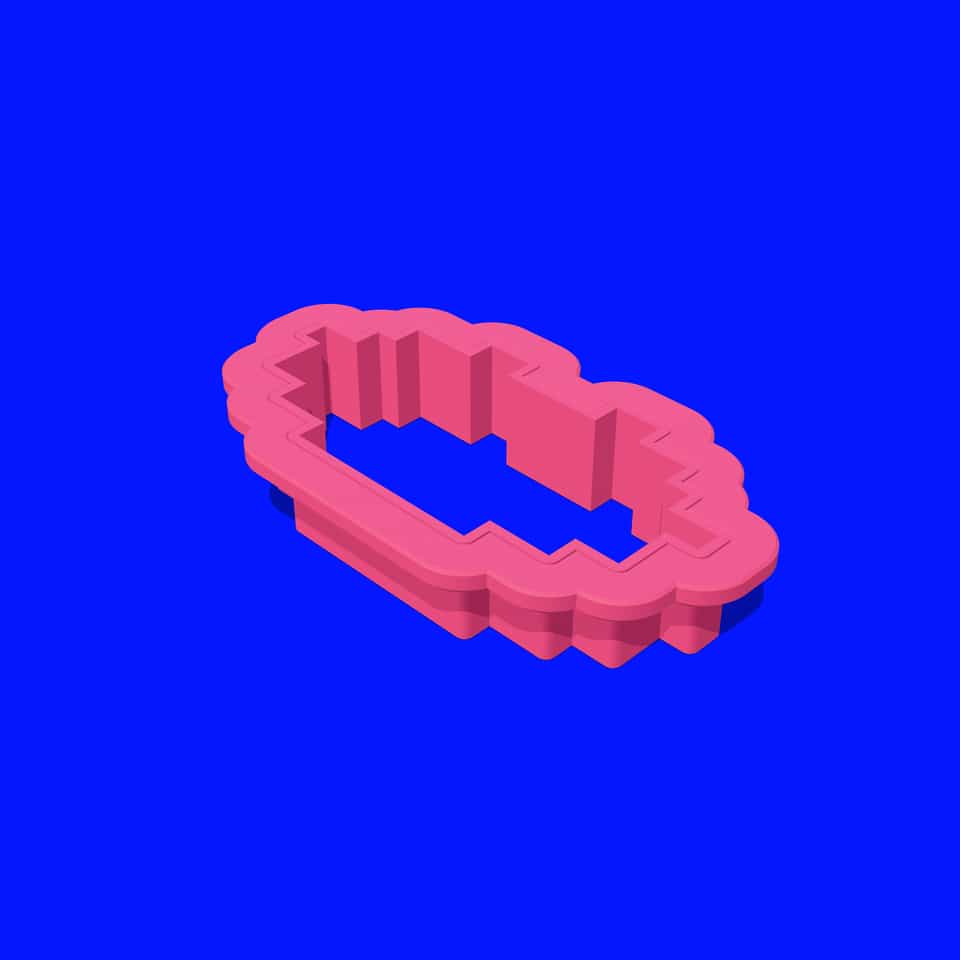

The Outer lip cutter makes the orange shape, and the Inner lip cutter makes the smaller yellow shape. Place them on the base in that order, with the pixel steps in line.

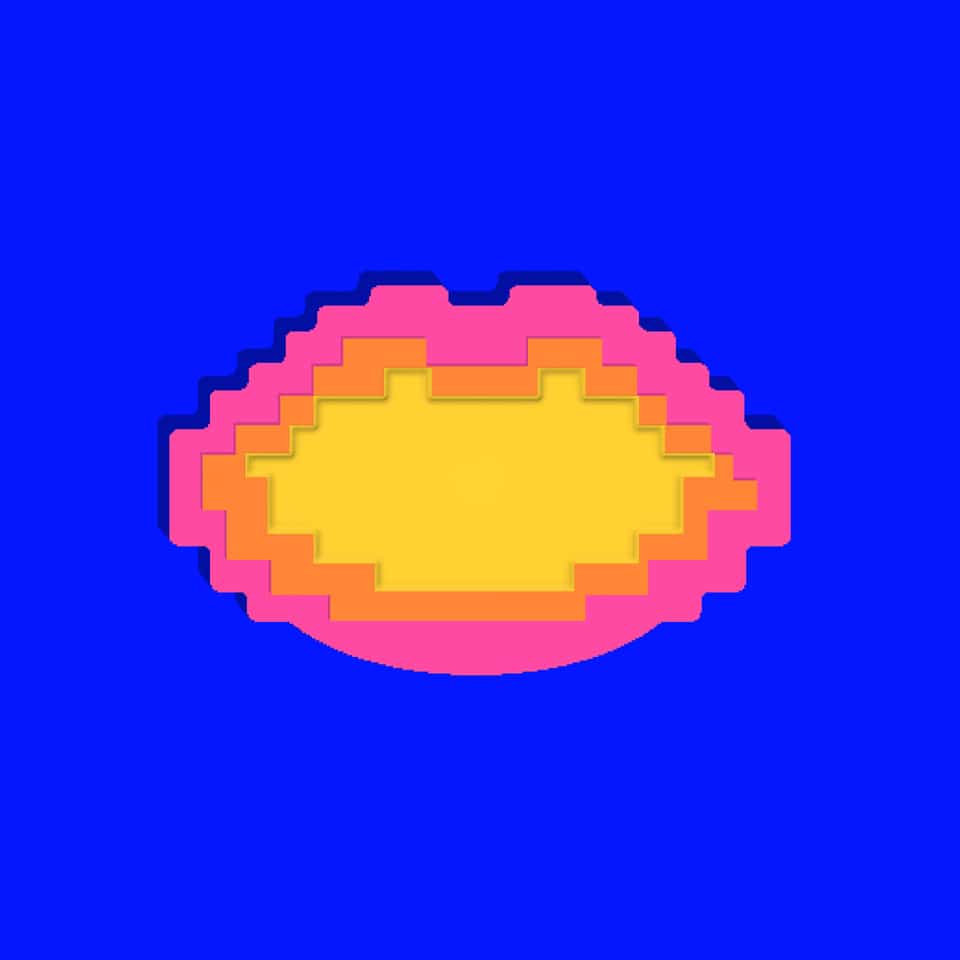

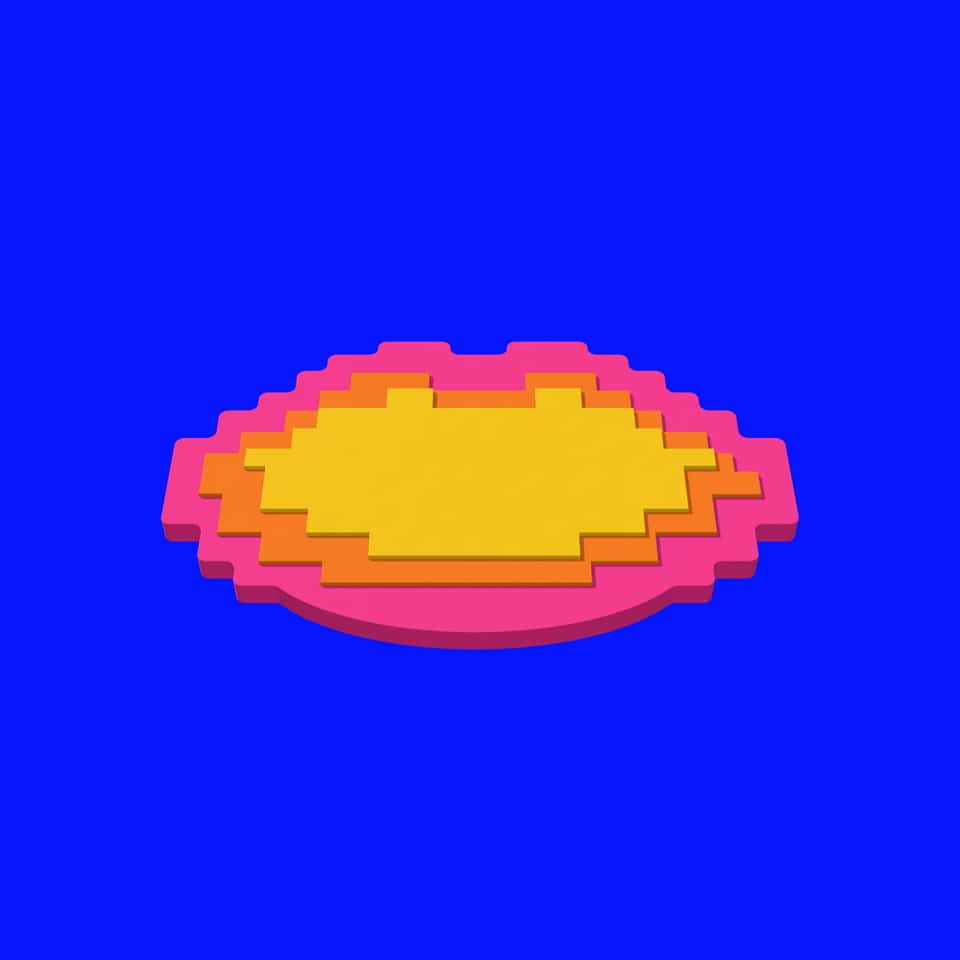

Pink base, orange lip and yellow inner layer stacked in order.Help with this step
Step 03 · Teeth, Tooth line and Base cutters
Add the teeth and black line, then trim if needed
The Teeth cutter makes the connected white teeth. The Tooth line cutter makes the connected black bar and dividers that go on last. Trim with the Base cutter only if a layer has spread past the pink outline.

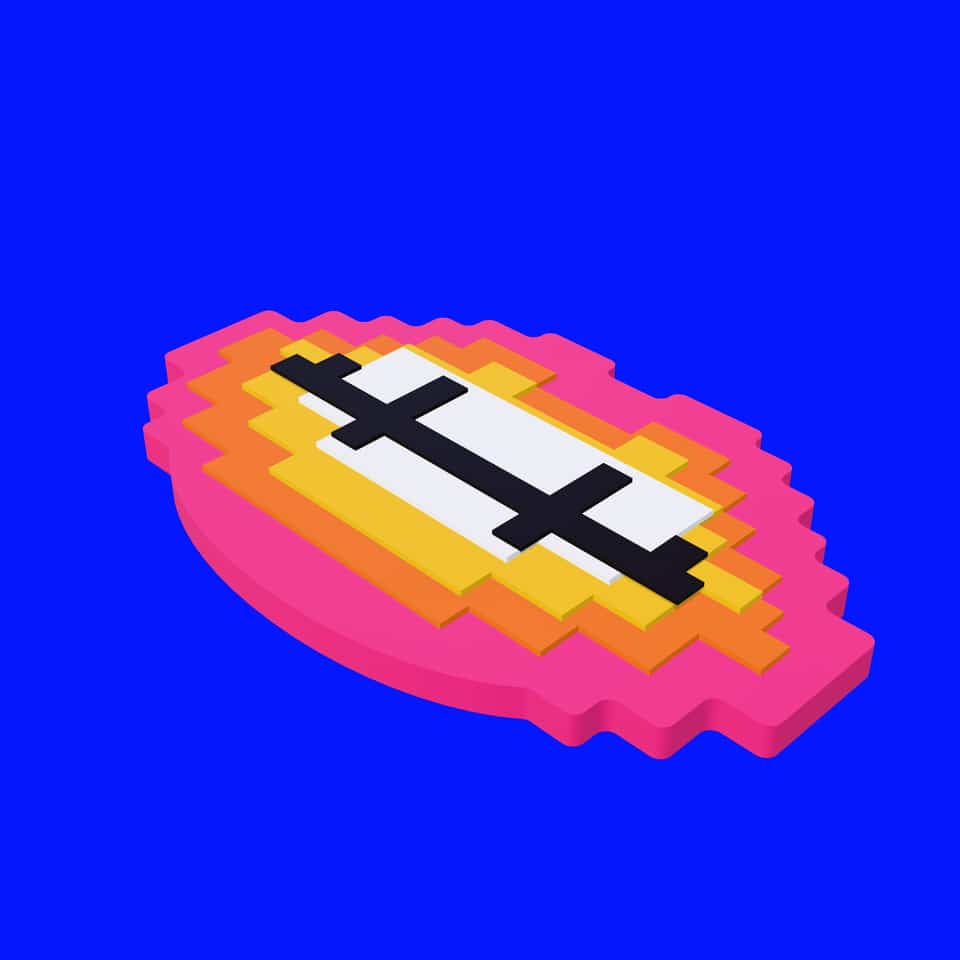

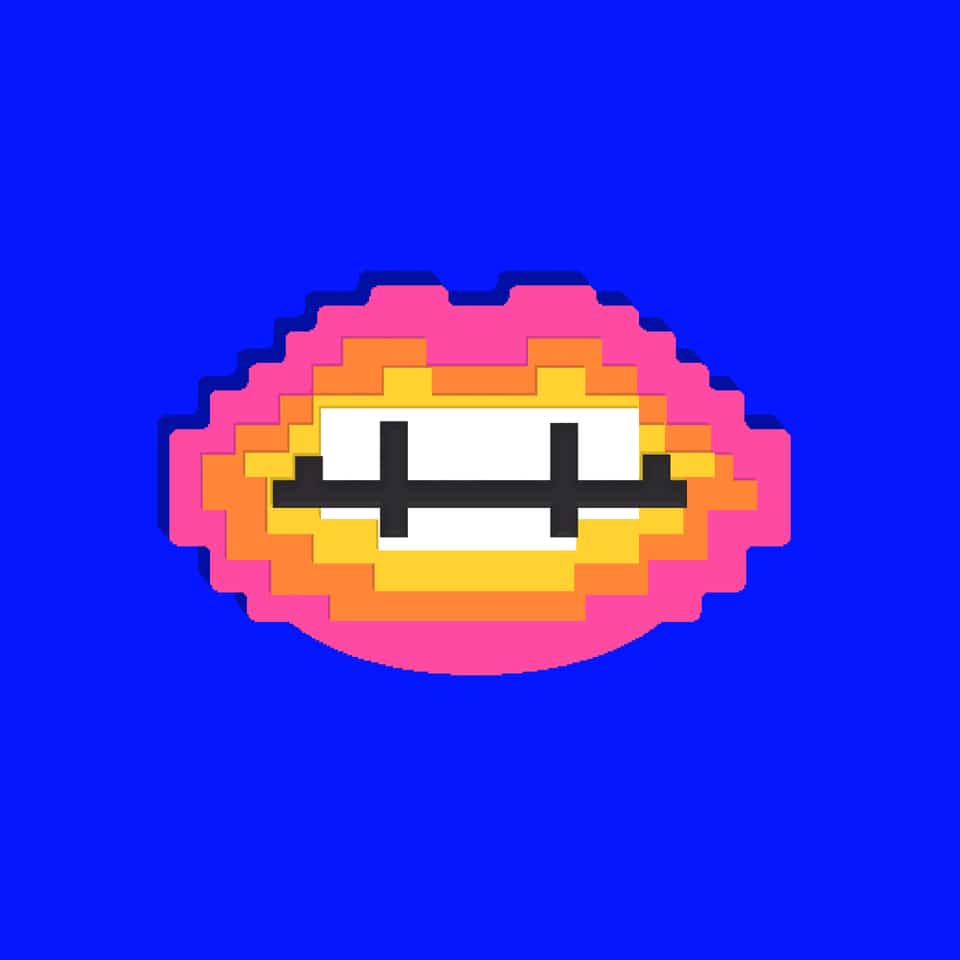

All five layers in place: pink base, orange, yellow, connected white teeth and the black line on top.Help with this step
Step 04 · bake and findings
Bake flat, then add the findings
Build and bake on the same flat, oven-safe tile to reduce handling of the raw layers. Follow the clay packet and cool fully. For drops, pendants and charms, drill the hanging hole through the pink base; for studs, a brooch or a magnet, glue the finding to the flat back and let the adhesive cure. The guide gives each hole, ring and finding.

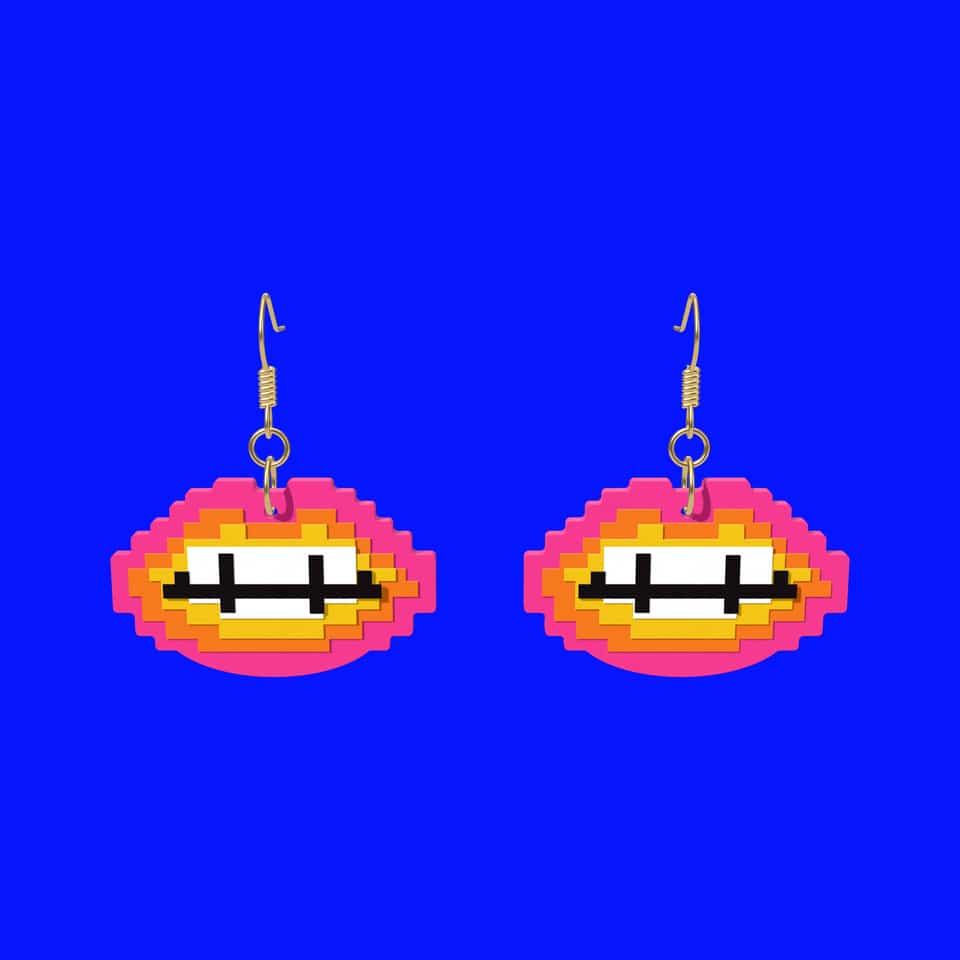

44 mm layered lips with their ear wires and jump rings attached.Help with this step
What you will need
Supplies for your piece
Use the tools you already own. Choose your piece to see its findings, then check the shared materials below. Some linked hardware packs contain enough for many pieces.
Links marked "Affiliate link" may earn us a commission at no extra cost to you. Check sizes and materials before checkout.
What are you making?
For your stud earrings
Plus glue from the core kit below.
Flat-pad stud posts with backs
Glue one flat-pad post to the flat back of each 26 mm stud. This assortment includes the guide's pad size and others.
Our pickCraftdady stainless steel earring posts and backs, 4 to 10 mm pads (470 pcs)Also inTitanium posts for sensitive earsAffiliate linkView on AmazonAffiliate link
For your drop earrings
The 44 mm layered lips make statement drops, estimated at about 5.3 g per earring with findings. Weigh each finished earring.
Ear wires + jump rings
Ear hooks, silicone backs and open jump rings in one kit, enough for many pairs.
Our pickStainless steel French ear hooks with silicone backs and open jump rings (600 pcs)Compare other optionsAffiliate linkView on AmazonAffiliate linkJump rings
An 8 mm outside ring in 0.8 mm wire joins each drilled 44 mm lips to its ear wire; a 9 mm ring also fits. The linked gold-tone ring is 9 mm.
Our pickGold-colour iron jump rings, 9 mm outside, 7.5 mm inside (50 pcs)View on AmazonAffiliate linkSecond jump ring (optional)
Only if the piece hangs sideways: add a 5.5 mm ring in 0.8 mm wire between the first ring and the ear wire to turn it to face forwards.
Our pick304 stainless steel jump rings, 5.5 mm outside, 0.8 mm wire (100 pcs)View on AmazonAffiliate linkSmooth-jaw pliers
Two pairs open and close jump rings without scratching them. This kit adds a starter set of findings.
View on AmazonAffiliate link
For your brooch
Plus glue from the core kit below. Every brooch stays under 11 g with its pin except the 62 mm relief, at about 11.8 g; weigh yours.
Tie-tack pin with clutch
Glue the pin's flat pad to the top third of the baked, cooled back. If it turns on fabric, add a second pin at the same height.
Compare on AmazonAffiliate linkBar pin (optional)
A 25 mm bar pin suits the 44 and 48 mm lips, and a 32 mm bar pin suits the 56 and 62 mm lips. It must fit fully on the flat back.
Our pickBrooch bar pin backs (assorted sizes)View on AmazonAffiliate link

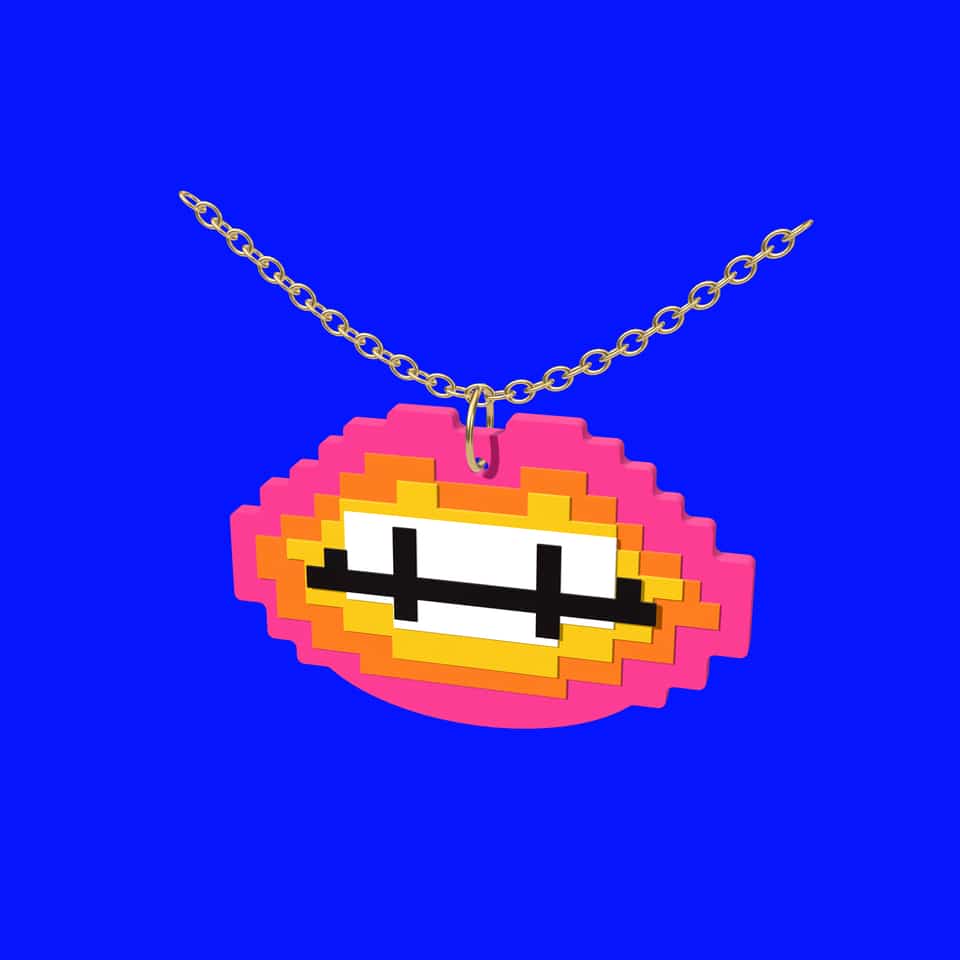

For your pendant
Plus glue from the core kit if you use a bail.
Necklace chain
Ready-made chains with clasps, so the pendant is finished as soon as it hangs.
Our pick18 inch stainless steel cable chains with lobster clasps (30 pack)Also inGoldAffiliate linkBlackAffiliate linkView on AmazonAffiliate linkJump rings
A ring through the drilled hole joins the lips to the chain. The guide gives the ring for each size.
Look forJump rings in 0.8 mm wire, in the size the guide gives for your lipsSmooth-jaw pliers
Two pairs open and close jump rings without scratching them. This kit adds a starter set of findings.
View on AmazonAffiliate linkGlue-on bails

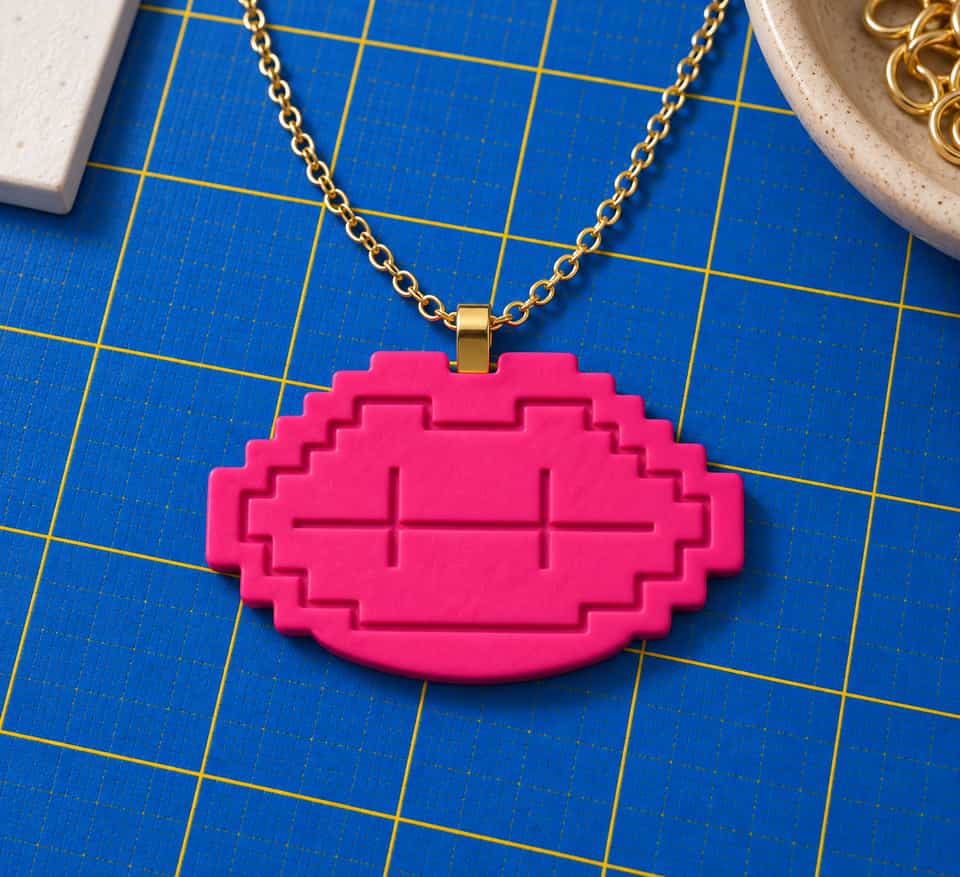

Relief lips, and any size you would rather not drill, hang from a bail glued to the flat back instead of a hole.
Look forPlain glue-on flat pad bailsCompare on AmazonAffiliate link

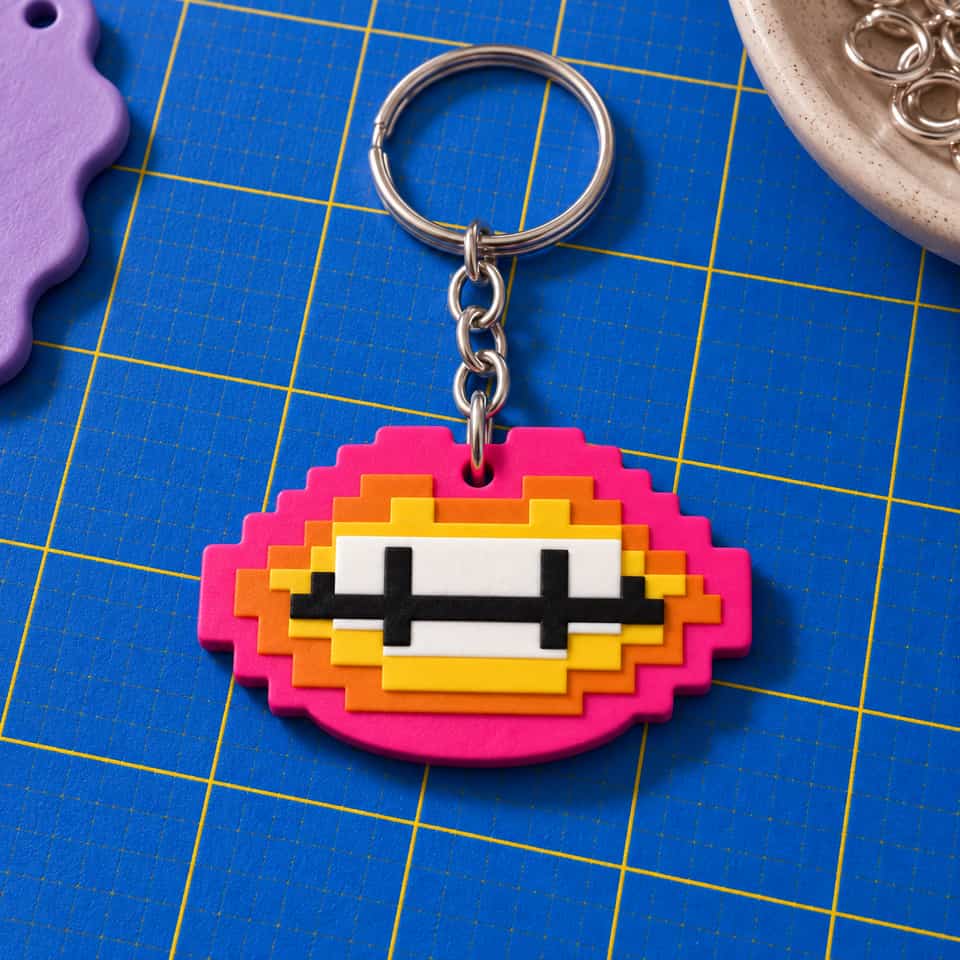

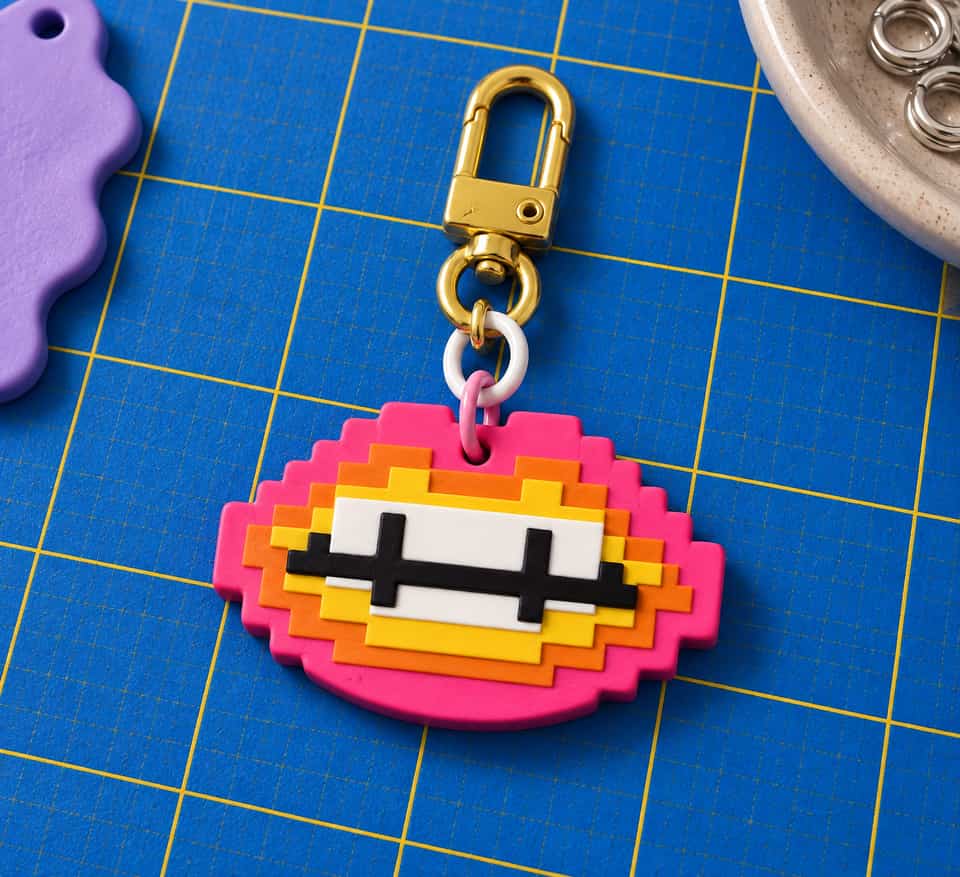

For your keychain or bag charm
Keep it decorative: hold the metal ring when you pull out your keys, not the clay.
Split key rings and snap clasps
A split keyring for keys, or a snap clasp that clips to a bag strap. This pack has both.
Our pickCoolrunner gold swivel lobster clasps and 1 inch key rings (25 of each)Compare other optionsAffiliate linkView on AmazonAffiliate linkJump rings
A ring through the drilled hole of a 56 or 62 mm layered lips joins it to the key ring or clasp. The guide gives the rings for each size.
Look forJump rings in 0.8 mm wire, in the sizes the guide gives for your lipsConnector ring
A 7 mm ring in 0.8 mm wire joins the first ring to the short chain below the split keyring; the swivel snap clasp uses two linked 8 mm connectors.
Our pick304 stainless steel jump rings, 7 mm outside, 0.8 mm wire (100 pcs)View on AmazonAffiliate linkSmooth-jaw pliers
Two pairs open and close jump rings without scratching them. This kit adds a starter set of findings.
View on AmazonAffiliate linkGlue-on bails
Relief lips, and any size you would rather not drill, hang from a bail glued to the flat back instead of a hole.
Look forPlain glue-on flat pad bailsCompare on AmazonAffiliate link

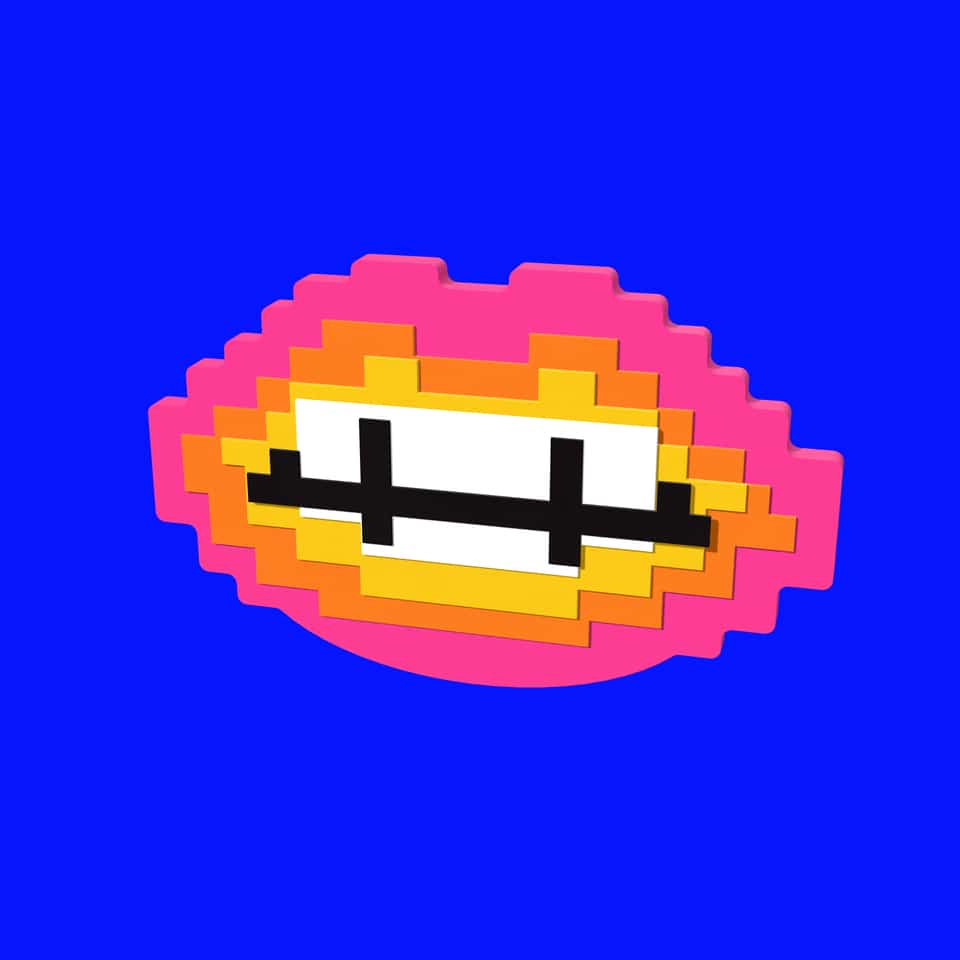

For your fridge magnet
Plus glue from the core kit below.
Disc magnets
Glue one to the flat back once the piece has baked and cooled. Never bake a magnet.
Our pick10 x 2 mm neodymium disc magnets (120 pack)View on AmazonAffiliate linkKeep loose and finished magnets away from young children and pets; a swallowed magnet can cause serious internal injury, so get medical help straight away. Keep magnets away from pacemakers. Selling magnets? Check the magnet safety rules where you sell.
For your wall art display
The pair you hang on it uses the drop earring supplies.
Flat-head nail or screw
A nail or screw with a flat head about 8 mm across carries the display through the printed hanger's keyhole. A smaller head can slip through the slot. The guide gives the shank and gap that fit.
Look forA small nail or screw with a flat head about 8 mm acrossThin double-sided mounting tape
For the no-nail route: it sticks the printed stud to the wall. Thin tape keeps the display hanging flat.
Look forThin double-sided mounting tapeGel super glue
Glues the printed hanger to the back of the baked, cooled display. Keep it out of the slot and let it cure fully.
View on AmazonAffiliate linkSmall drill bit and pin vice
Drills the two earring holes in the baked, cooled display. The guide gives the bit size.
Look forPin vises with micro drill bitsCompare on AmazonAffiliate link
Core kit for every pieceCheck your studio setup: 12 supplies used across projects.
Most makers already own some of these; the rest is your shopping list.
Polymer clay
Three colours for the layered studs, five for the larger layered lips (shown: pink, orange, yellow, white and black), or one colour for the relief.
Look forSculpey Premo clay coloursCompare on AmazonAffiliate linkAcrylic roller
Rolls even slabs between thickness guides.
Our pickAcrylic rollerView on AmazonAffiliate linkThickness guides
Use bought or separately printed rolling guides for the base and relief slabs, and thin plastic shim sheets for the colour layers. The guides and shims are not included in these downloads.
ClayBake toolThickness guidesThin shims
Roll the two thin stud sheets or four larger colour sheets between measured shims; standard slab rails are too thick for them. Check the real shim thickness with calipers before you roll.
Compare on AmazonAffiliate linkTissue blade
Lifts thin cut shapes off the surface without stretching them.
Look forSculpey tissue blades (rigid blade included)Compare on AmazonAffiliate linkHole marking guide, pin vice and drill bits
Mark the hanging hole on raw layered lips with the marking guide from the free ClayBake hole punch set, or a ruler and needle, then drill it after baking and full cooling with the back supported. Larger relief lips hang from glued bails; studs, brooches and magnets need no hole.
Baking parchment
Supports the piece while you press the layers together and bake.
Look forBaking parchmentCompare on AmazonAffiliate linkOven thermometer
Checks the real oven temperature against your clay packet.
Our pickTaylor 5932 large dial oven thermometerView on AmazonAffiliate linkWet/dry sandpaper
Smooths the edges and back of the baked piece, from 400 grit up.
Our pickLANHU wet/dry sandpaper, 400 to 1,500 grit (12 sheets)View on AmazonAffiliate linkJewellery glue
Glue stud posts, brooch pins, bails or magnets to baked, cooled clay. Jump rings through holes do not need glue. Follow the adhesive label and let it fully cure.
Look forE6000 Jewelry & Bead adhesiveCompare on AmazonAffiliate linkDust mask
For dry sanding and drilling baked clay.
Our pick3M 8210 N95 particulate respirator (2 pack)View on AmazonAffiliate linkSafety glasses
For drilling and sanding.
Our pick3M Virtua CCS clear anti-fog safety glassesView on AmazonAffiliate link
Worth it if you make and sellTools that save time and keep pieces consistent when you make in batches.
Pasta machine
Conditions clay and rolls even slabs far faster than a hand roller. Keep it for clay only.
Our pickMarcato Atlas 150 pasta machineView on AmazonAffiliate linkLiquid clay or clay adhesive
A dab tacks down a thin layer whose corner lifts before baking.
Look forSculpey Oven-Bake Clay AdhesiveCompare on AmazonAffiliate linkPaint or finish
For colour or shine after baking. Try it on baked scrap first.

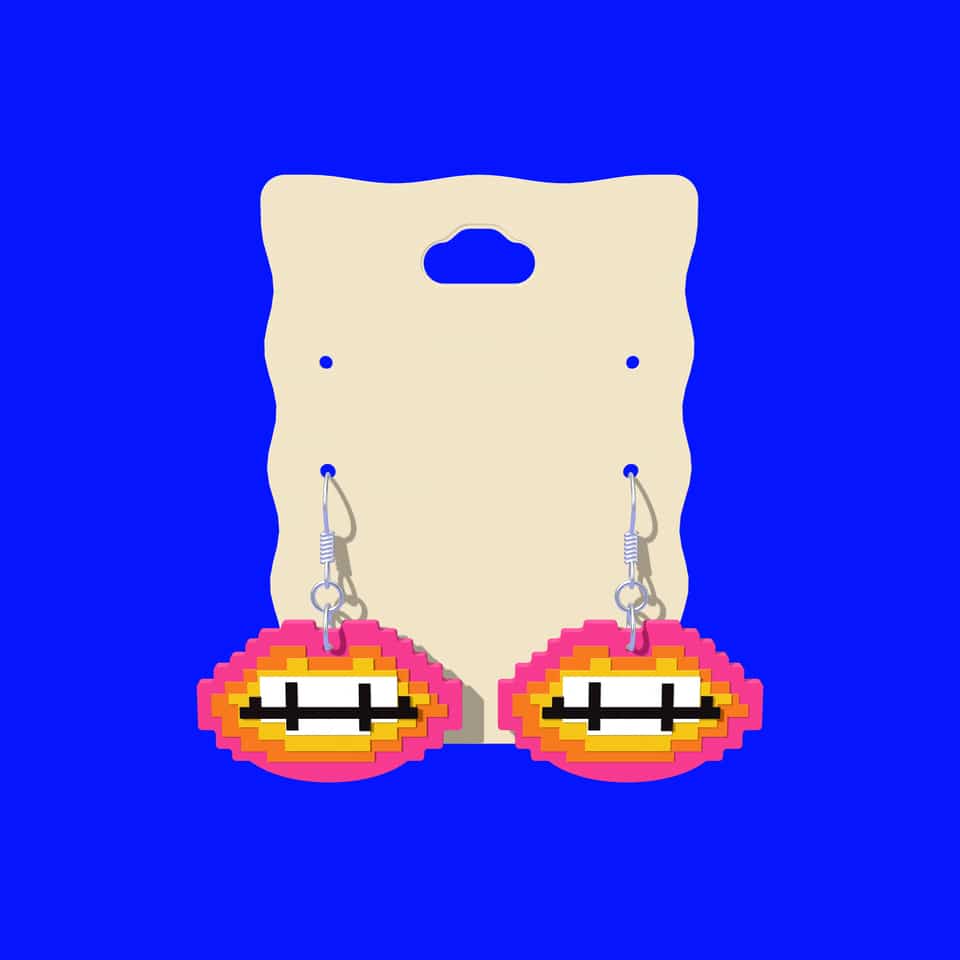

Compare on AmazonAffiliate linkEarring display cards
Print the card and cutter files to present and sell your earrings.
ClayBake toolClayBake earring display cardsEarring display stand
Print a stand to show your pairs at markets and in product photos.
ClayBake toolClayBake earring display stand
Printing your cuttersAlready have a printer? Skip this. You can also send the files to a 3D printing service.
FDM 3D printer
Prints the cutter files. If buying, compare models for your budget and workspace, and ventilate while printing.
Look forBambu Lab 3D printersCompare on AmazonAffiliate linkPLA+ or Tough PLA filament
The guide gives the nozzle, layer and support settings. Match the filament diameter to your printer.
Look forPLA+ / Tough PLA filamentCompare on AmazonAffiliate link
Make it your own
Try another version
See how each piece is finished, then shop only what it needs. The guide covers the sizes and attachment steps; clay and hardware are not included.
Stud earrings
Cut a stud with the three stud cutters, or press one with the relief stud cutter, then glue a flat-pad post to the flat back.
See what you need
Drop earrings
Hang each layered piece from an ear wire on a jump ring through its drilled hole. The guide gives the hole, ring and estimated weight.
See what you need
One-slab relief studs
The 26 mm relief pair with the lip contour, mouth bar and tooth dividers pressed into one slab.
See what you need
Brooch
Glue a tie-tack pin or a bar pin to the flat back once the lips have baked and cooled. Dry-fit it first and let the glue cure fully.
See what you need
Pendant
Hang the lips from a necklace chain on a jump ring through the drilled hole, or glue a bail to the back.
See what you need
Keychain
Hang the lips from a split keyring, or from a snap clasp on a bag strap. Keep it decorative: lift your keys by the metal ring, not the clay.
See what you need
Bag charm
A layered Pixel Lips charm hanging from a snap clasp.
See what you need
Fridge magnet
Glue a magnet to the flat back for a bright fridge decoration, then check that it holds on your fridge.
See what you need
Relief lips on a bail
Press one slab with the relief cutter for one-colour lips. Leave them plain or paint the recesses after baking, and hang them from a glued bail.
See what you need
Earring display card
Show your pairs on printed earring display cards or a printed stand at a market stall or in product photos.
See the display card kit
Pegboard display
Two pairs of 44 mm Pixel Lips drop earrings, in the kit colours and Classic Kiss, hanging from the printed pegboard of the display stand. The 44 mm drops are about 5.3 g per earring with findings; weigh your pair.
See the display stand kit
Wear the 44 mm drop
Hang each layered piece from an ear wire on a jump ring through its drilled hole. The guide gives the hole, ring and estimated weight.
See what you need
A studio moment
Layered Pixel Lips earrings beside the studio tabby, shown in a close overhead composition.
Pixel Lips on the studio wall
A layered Pixel Lips wall display with matching hanging earrings in a sunlit studio.
Colourway

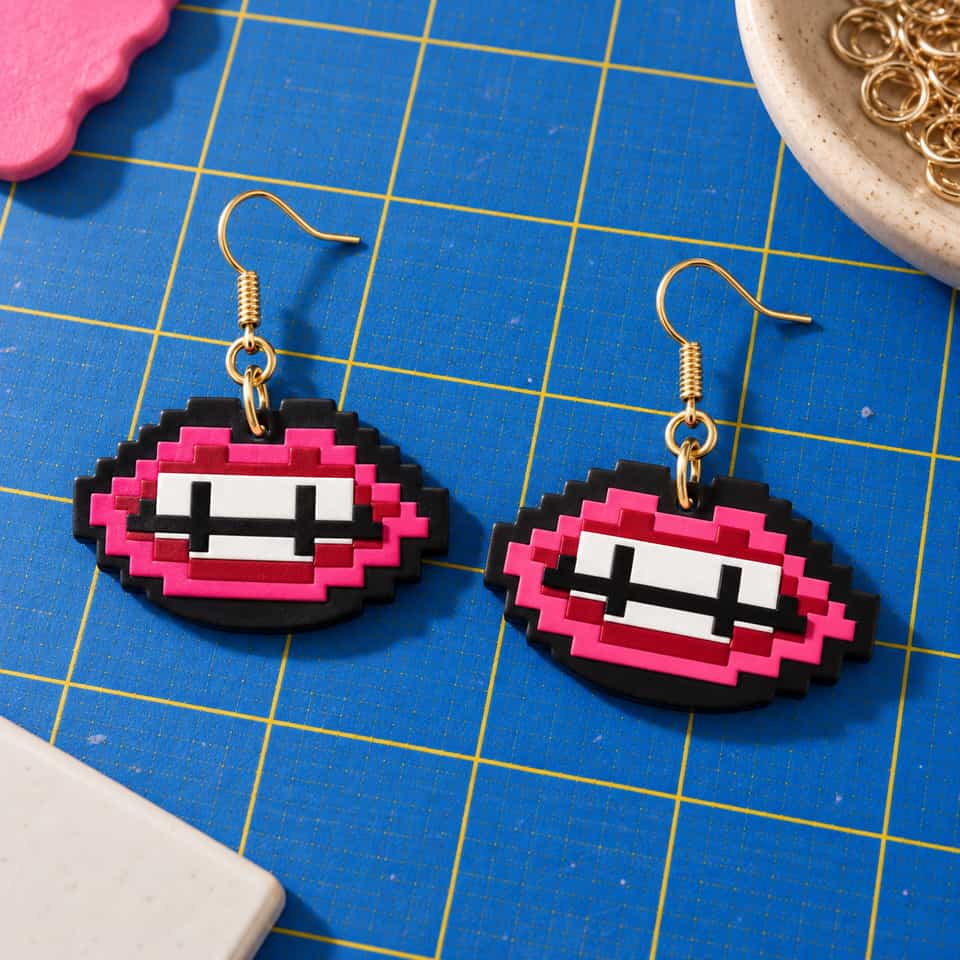

Try a Classic Kiss palette
Keep the same five cutters and swap the clay colours, one for each layer of the lips.
- BaseBlack
- Outer lipsHot pink
- Inner lipsDeep red
- TeethWhite
- Tooth lineBlack
Colourway

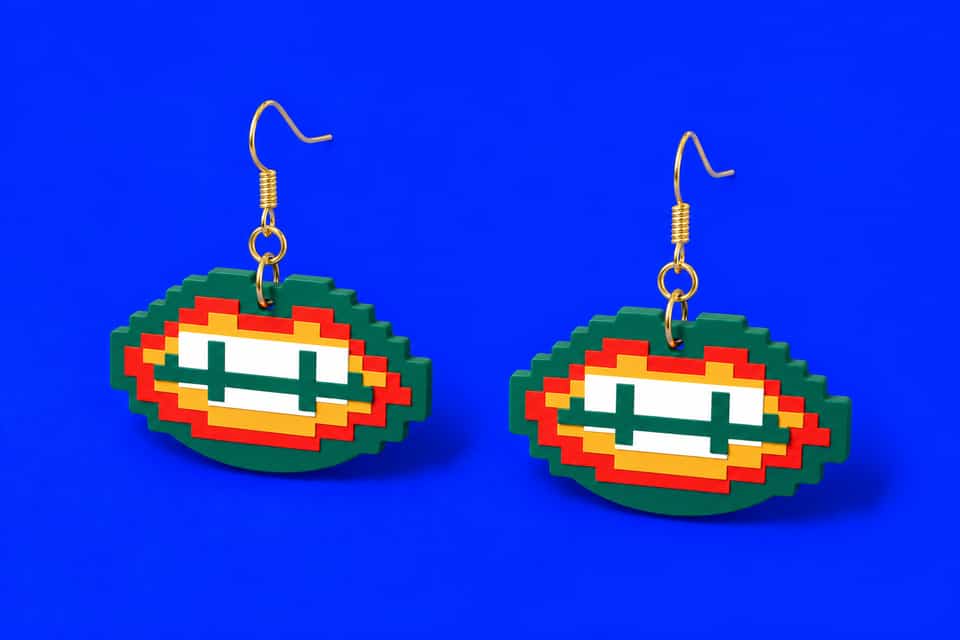

Try a Cracker Kiss palette
Pixel Lips in Cracker Kiss colours: a green base, red lips, a gold inner layer, white teeth and a green tooth line.
- BaseGreen
- Outer lipsRed
- Inner lipsGold
- TeethWhite
- Tooth lineGreen
Wall art display
Cut the same five layers at 110 mm for wall art that holds a pair of drop earrings.
See the wall art displayMaker licence included
You may sell the finished polymer clay pieces you make. You may not sell, share or redistribute the digital files or 3D-printed tools. See the included Maker Licence for the full terms.
Need help with your files?
If a file is missing, won't open or doesn't match the listing, message us through Etsy messages with the build kit name and filename, and we'll put it right.
Message us on Etsy
